Britain’s most successful motorcycle racing team

THE BIKE

2024 DUCATI Panigale V4R

THE BIKE

2024 DUCATI Panigale V4R

After delivering two prestigious British Superbike Championships for Ducati in 2016 and 2017 aboard the Panigale R V2, the focus for 2019 was on the brand-new, and MotoGP-inspired Ducati V4R. With a race-bred heritage and machines supplied directly from Ducati Corse, the factory’s dedicated racing division in Italy, the PBM team added the 2019 and 2020 titles to their proud list of achievements before an unprecedented one-two finish for PBM Ducati in the never-to-be forgotten 2024 BSB season.

The Ducati Panigale V4 MY23 represents the last step in the characteristic path of Borgo Panigale's sports bikes. As is the case with motorcycles engaged in MotoGP and World SBK, the Panigale V4 is updated and improved year after year, and the 2023 version represents the most significant evolution since its launch year. For MY2023, a series of electronic improvements have been introduced that make the bike even easier and more intuitive for riders of all levels.

The most significant updates affect every aspect of the bike: aerodynamics, engine, chassis, ergonomics, and electronics. The end result is a bike that is even faster on the track and at the same time increasingly intuitive and less fatiguing, which is as high performance in the hands of the professional rider as it is rewarding for an amateur.

This is a paragraph. Writing in paragraphs lets visitors find what they are looking for quickly and easily.

Learn more Learn more

This is a paragraph. Writing in paragraphs lets visitors find what they are looking for quickly and easily.

This is a paragraph. Writing in paragraphs lets visitors find what they are looking for quickly and easily.

Learn more

This is a paragraph. Writing in paragraphs lets visitors find what they are looking for quickly and easily.

Learn more

This is a paragraph. Writing in paragraphs lets visitors find what they are looking for quickly and easily.

Learn more


Name Lastname


Title



Name Lastname


Title



Name Lastname


Title


Technical Specification (Road Bike)

  • TYPE

    Desmosedici Stradale 90° V4, counter-rotating crankshaft, four Desmodromic timing, four valves per cylinder, liquid-cooled

  • DISPLACEMENT

    1103cc

  • BORE X STROKE

    81 x 53.5mm

  • COMPRESSION RATIO

    14.0:1

  • STANDARD POWER

    158.5 kW (215.5 bhp) @ 13,000 rpm

  • TORQUE

    123.6 Nm (91.2 lb-ft) @ 9,500 rpm

  • FUELLING

    Electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies. Variable length intake system

  • EXHAUST SYSTEM

    4-2-1-2 system, with two catalytic converters and four lambda probes.

  • GEARBOX

    Six speed with Ducati Quick Shift (DQS) up/down EVO 2

  • PRIMARY DRIVE

    Straight cut gears; Ratio 1.80:1

  • STANDARD RATIOS

    1=36/15 2=34/17 3=33/19 4=32/21 5=30/22 6=27/22

  • FINAL DRIVE

    Chain 525; Front sprocket 16; Rear sprocket 41

  • CLUTCH

    Hydraulically controlled slipper and self-servo wet multiplate clutch. Self-bleeding master cylinder.

  • FRAME

    Aluminium alloy "Front Frame" with optimised stiffnesses

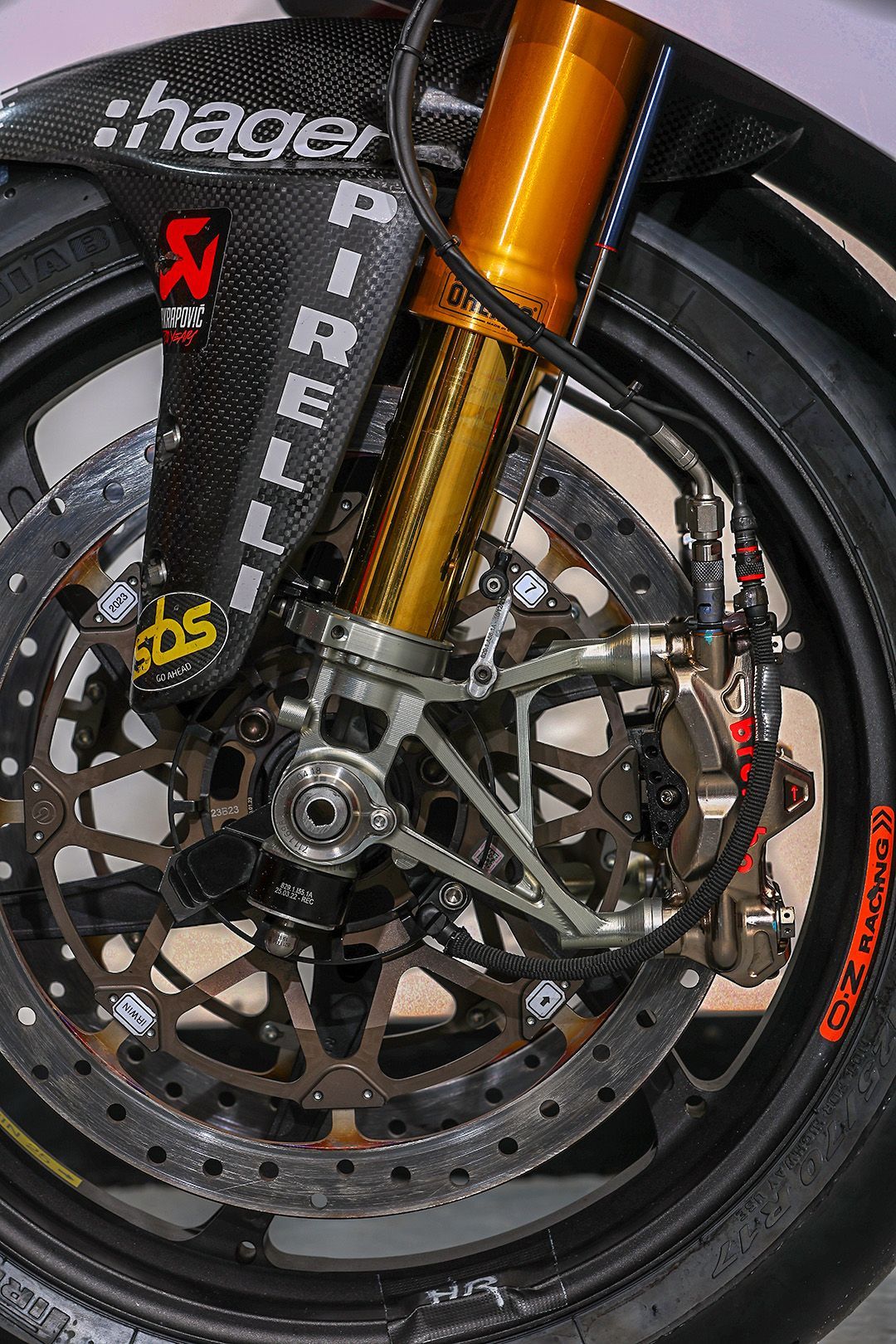

  • FRONT SUSPENSION

    Fully adjustable Showa BPF fork 43mm chromed inner tubes

  • FRONT WHEEL

    5-spokes light alloy 3.50" x 17"

  • FRONT TYRE

    Pirelli Diablo Supercorsa SP 120/70 ZR17

  • FRONT BRAKE

    2 x 330mm semi-floating discs, radially mounted Brembo Monobloc Stylema® (M4.30) four-piston calipers with Bosch Cornering ABS EVO. Self-bleeding master cylinder.

  • REAR SUSPENSION

    Fully adjustable Sachs unit. Aluminium single-sided swingarm

  • REAR WHEEL

    5-spokes light alloy 6.00” x 17”

  • REAR TYRE

    Pirelli Diablo Supercorsa SP 200/60 ZR17

  • WHEEL TRAVEL

    120mm (4.7 inches) - 130mm (5.1 inches)

  • FRONT BRAKE

    2 x 330mm semi-floating discs, radially mounted Brembo Monobloc Stylema® (M4.30) four-piston calipers with Bosch Cornering ABS EVO. Self-bleeding master cylinder.

  • REAR BRAKE

    245mm disc, two-piston caliper with Bosch Cornering ABS EVO

  • INSTRUMENTATION

    Last generation digital unit with 5" TFT colour display Last generation digital unit with 5" TFT colour display

  • DRY WEIGHT

    175 kg (386 lb)

  • WHEELBASE

    1.469 mm (57.8 inches)

  • RAKE

    24.5°

  • TRAIL

    100mm (3.94 inches)

  • FUEL TANK CAPACITY

    17 litres - 4.49 gallon (US)

  • SAFETY EQUIPMENT

    Riding Modes, Power Modes, Bosch Cornering ABS EVO, Ducati Traction Control (DTC) EVO 3, Ducati Wheelie Control (DWC) EVO, Ducati Slide Control (DSC), Engine Brake Control (EBC) EVO, Auto tyre calibration

  • STANDARD EQUIPMENT

    Ducati Power Launch (DPL), Ducati Quick Shift (DQS) up/down EVO 2, Full LED lighting with Daytime Running Light (DRL), Sachs steering damper, Quick adjustment buttons, Auto-off indicators, Chain guard

  • OPTIONAL EQUIPMENT

    Ducati Data Analyser+ (DDA+) with GPS module, Ducati Multimedia System (DMS), Anti-theft, Heated grips

  • STANDARD

    Euro 5

  • CO2 EMISSIONS

    175 g/km
